Project Brief:

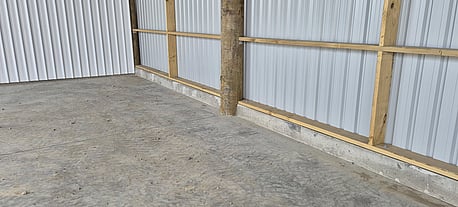

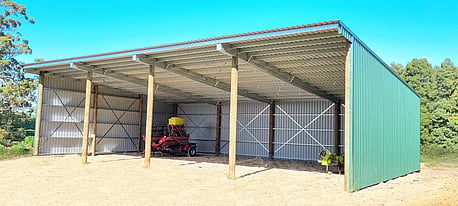

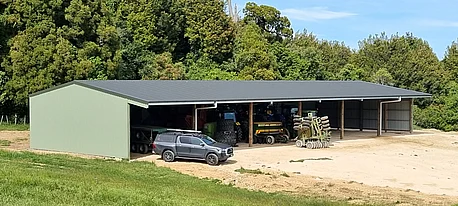

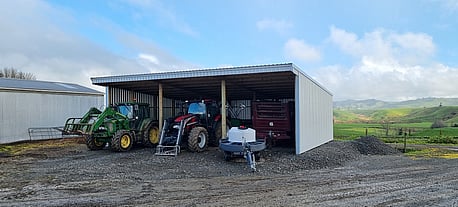

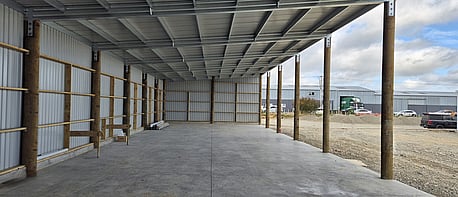

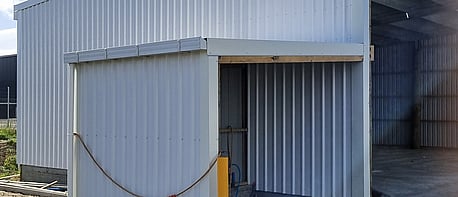

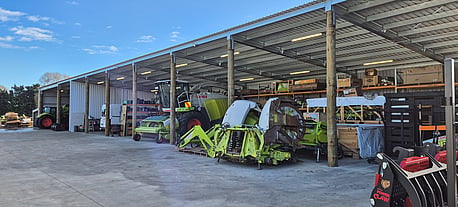

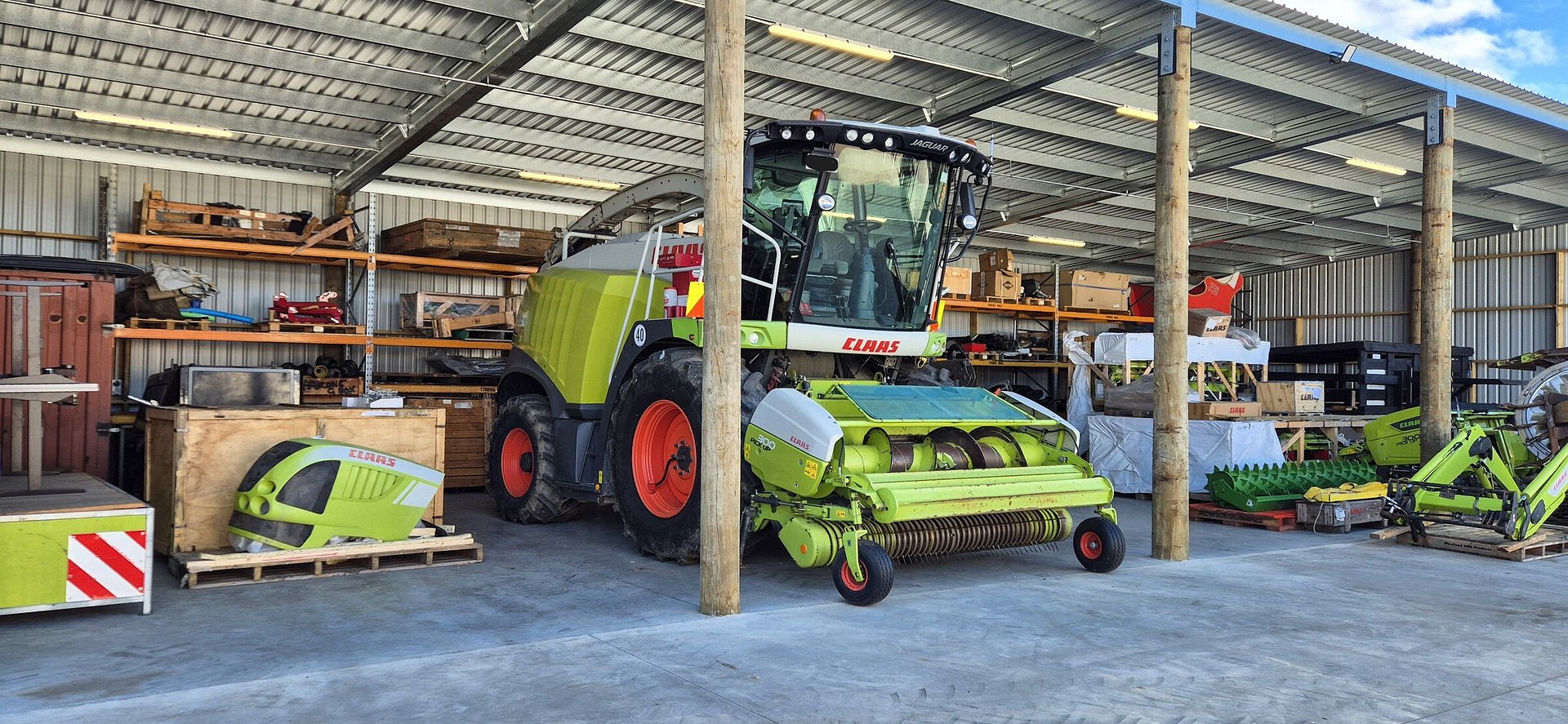

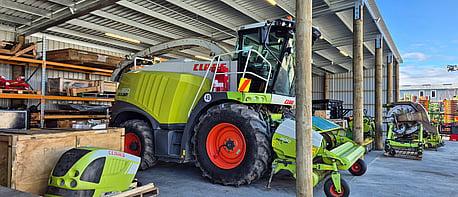

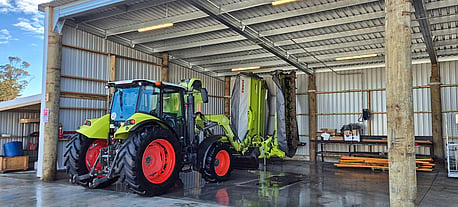

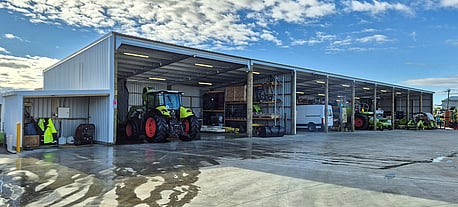

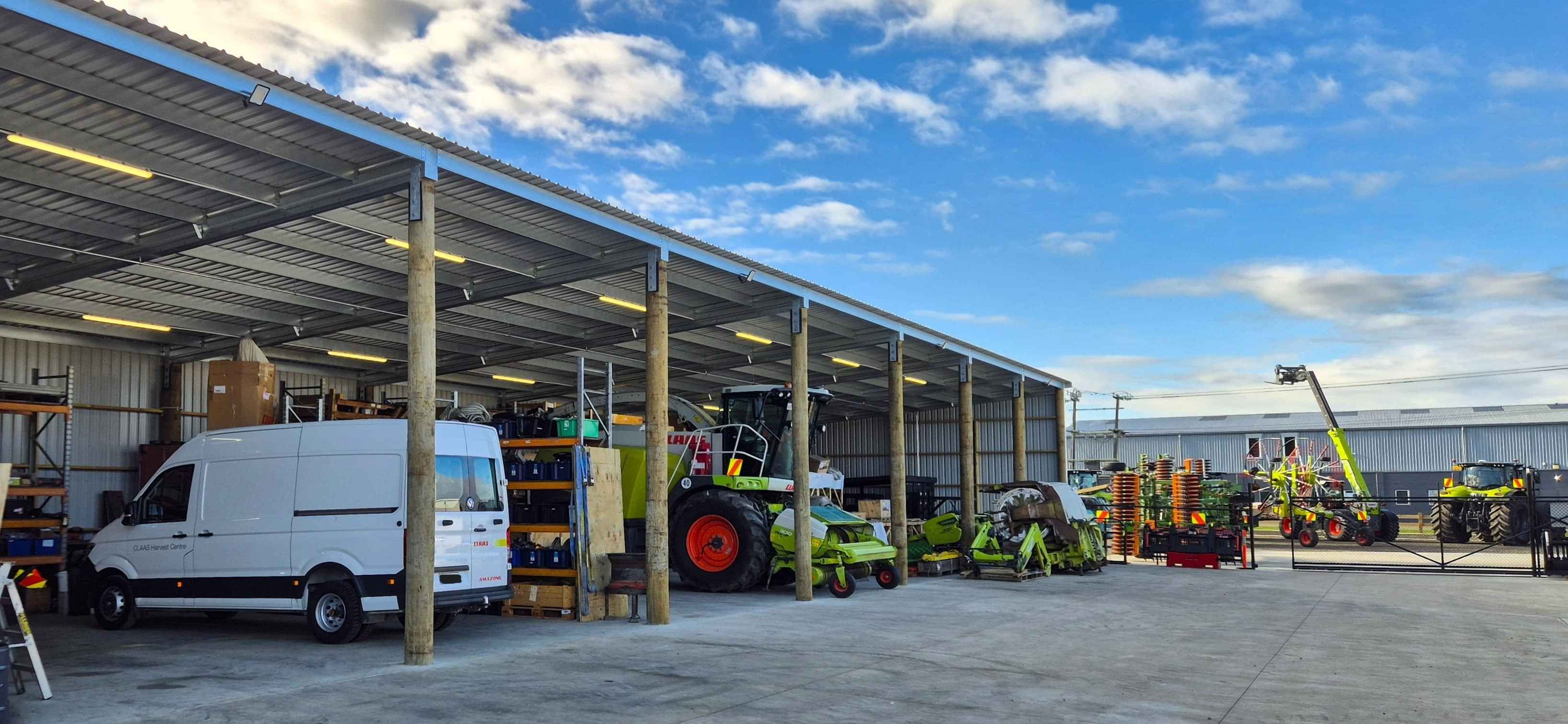

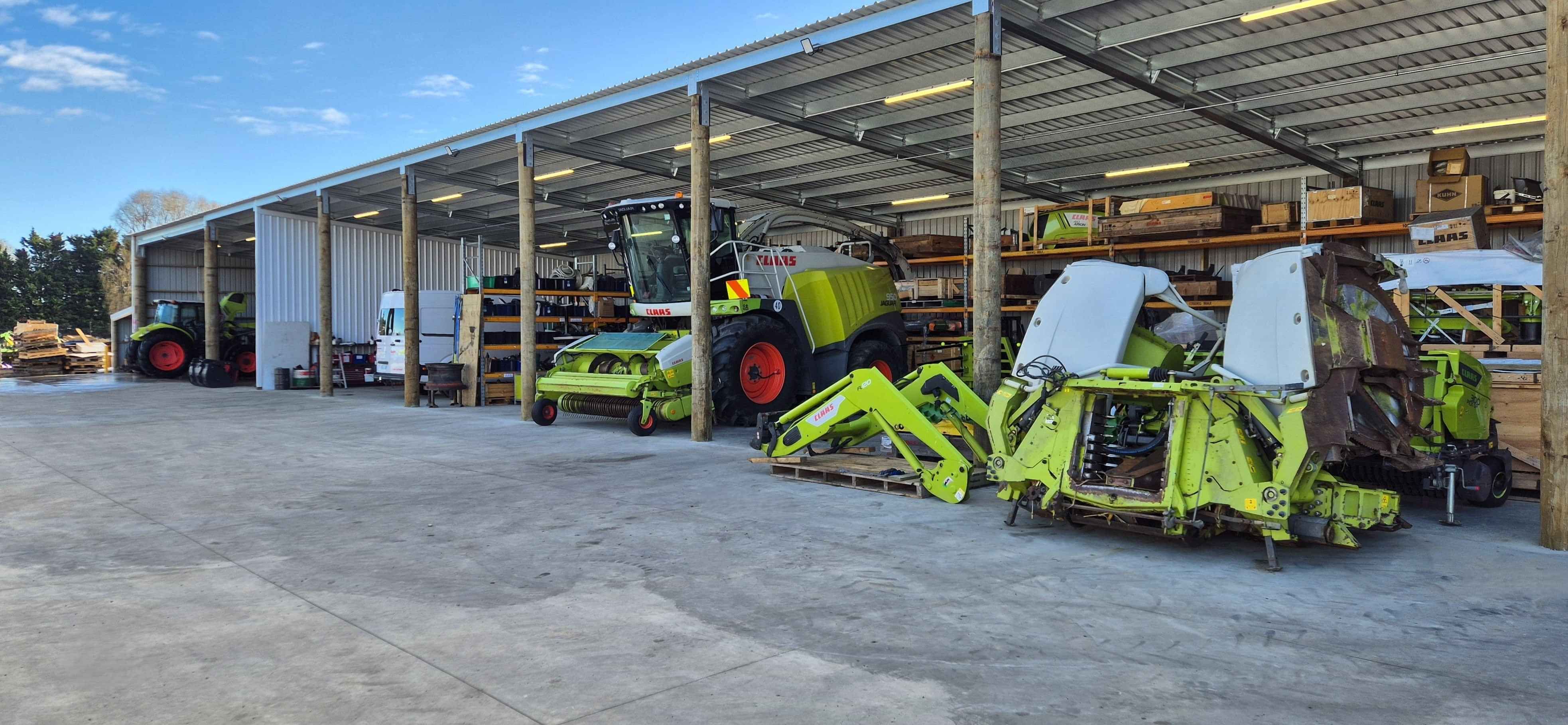

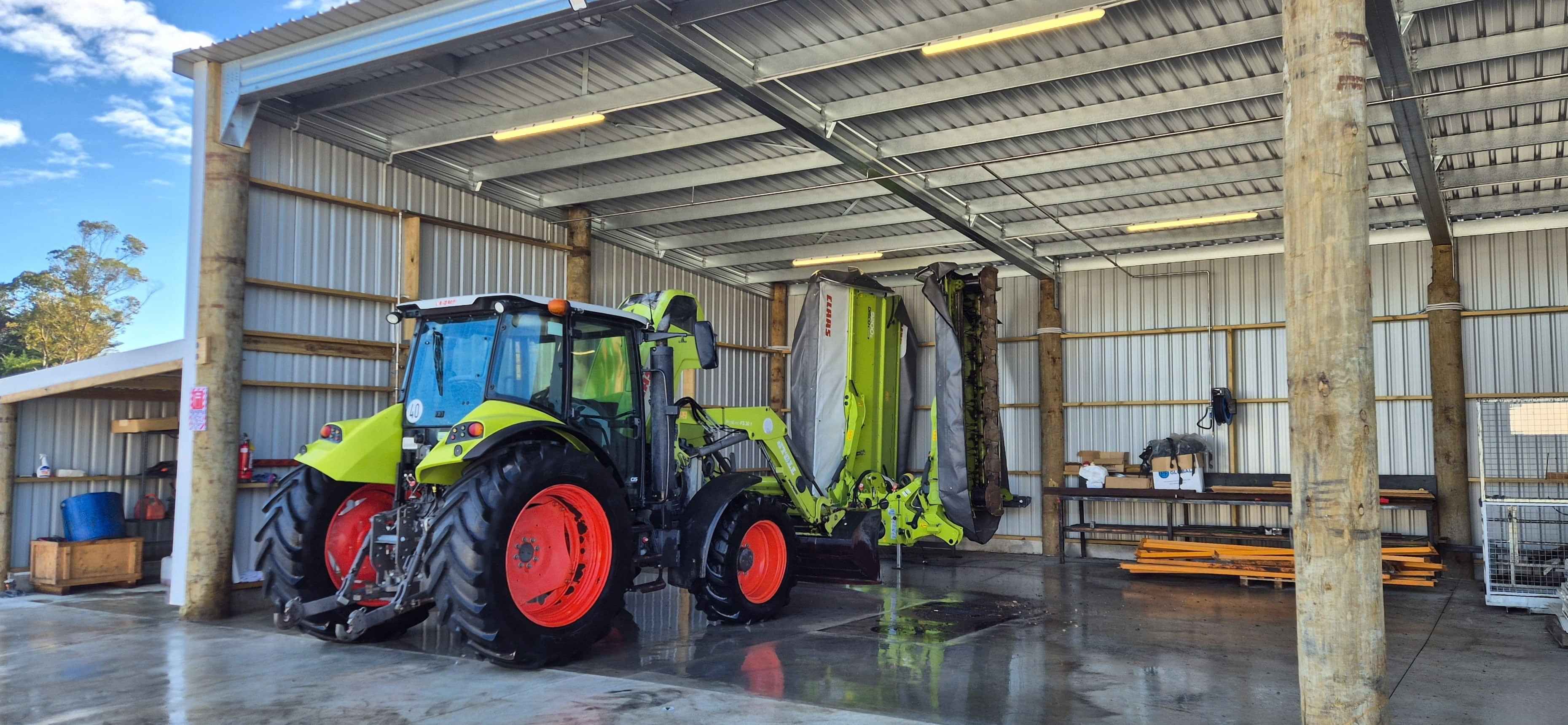

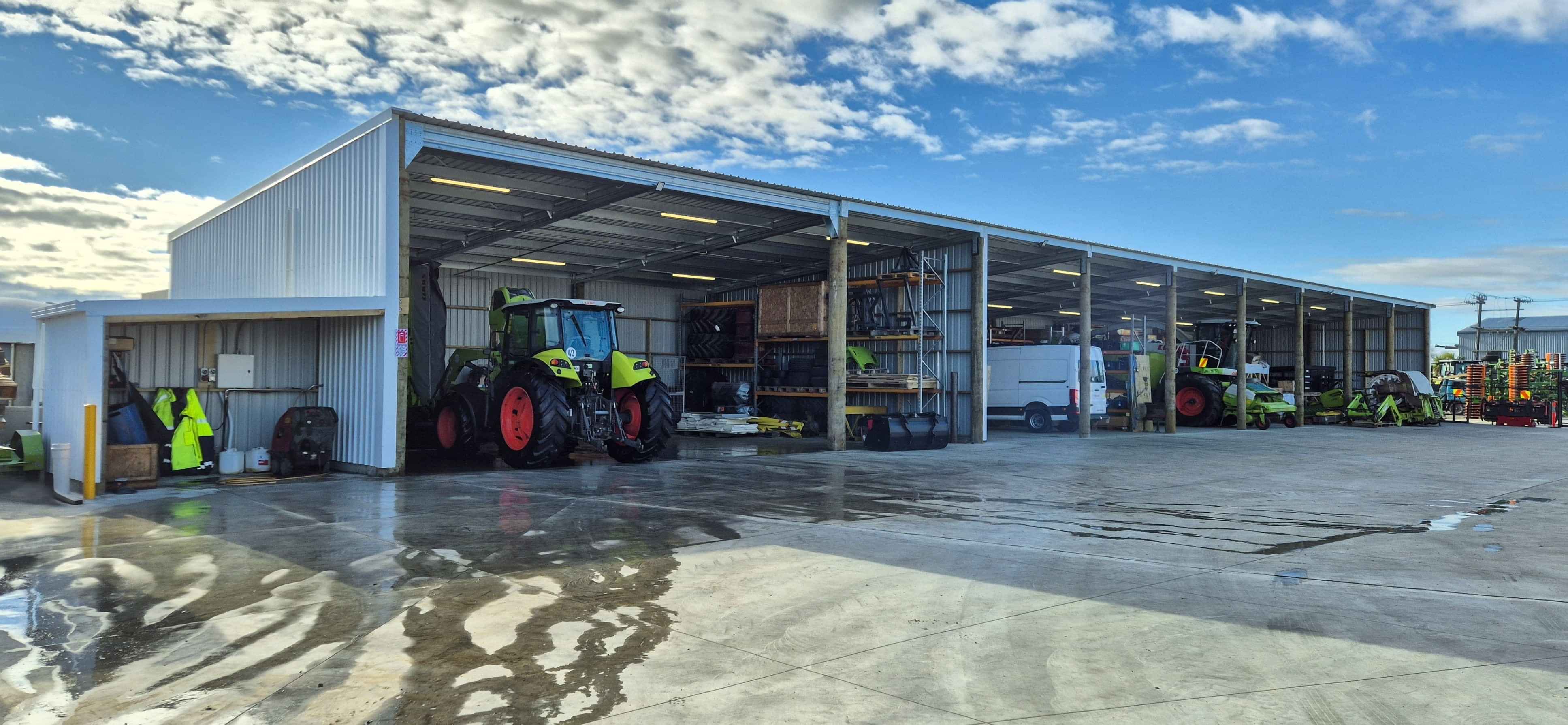

Our client required a large open front shed to protect their valuable tractors and other implements and support their humming machinery operation. Our design team got busy and worked closely with our client to develop the solution - using a robust timber pole structure with the advantages of our steel RS roof framing. The wash bay area includes a 10m lintel beam to allow combine harvesters and other large equipment to easily enter and exit without obstruction. The 150mm concrete floor includes a 200mm high perimeter nib which is a great feature for when washing down and helps protect the base of the walls.

• Location: Feilding

• Size - 50m x 10m Implement Shed

• Style - Mono-slope

• Heights - 4.2m Back - 5.1m Front

• Roof pitch - 5°

• Cladding - Ribbed profile.

• Colours - Tuituft

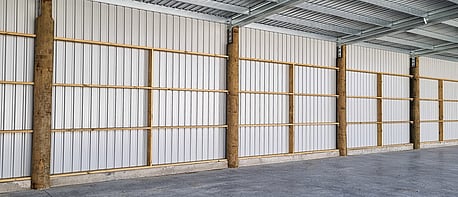

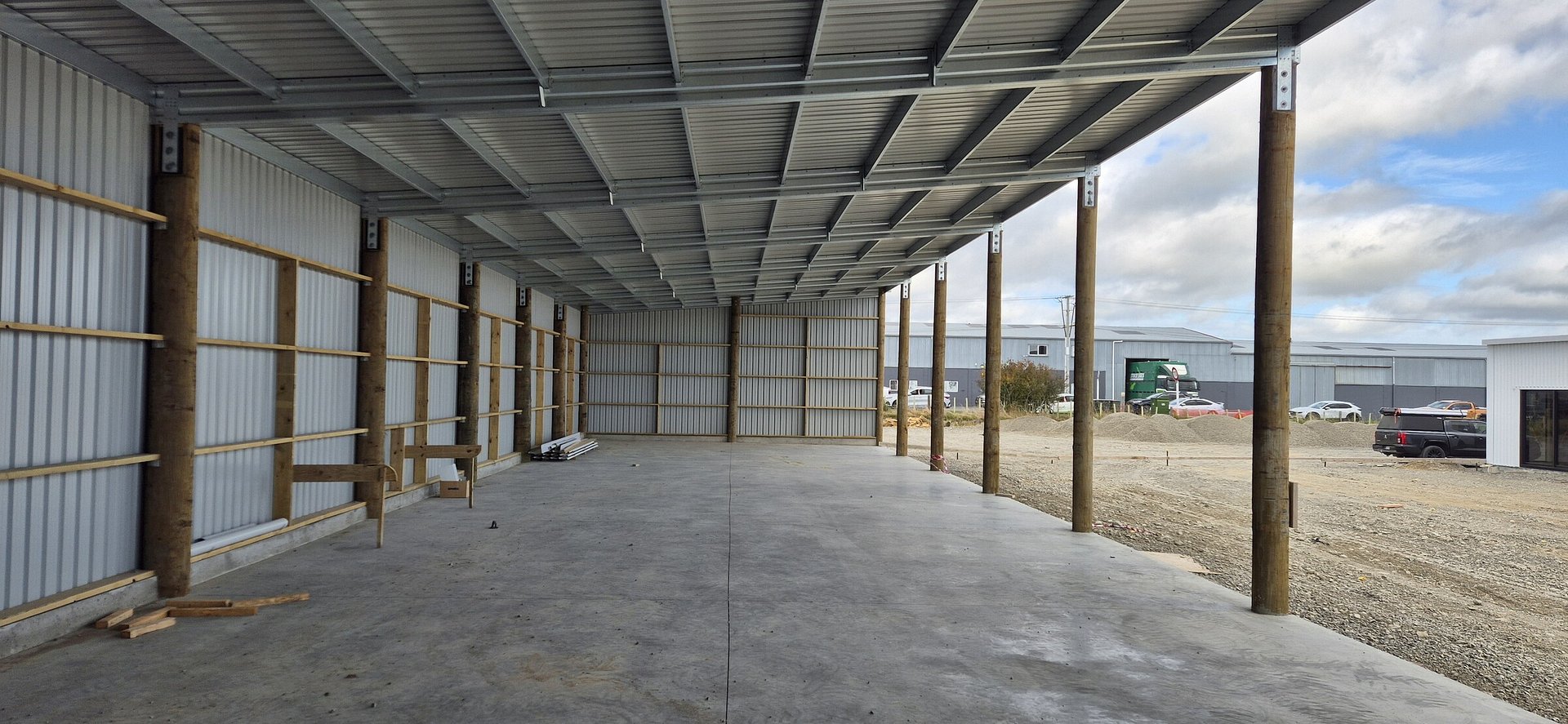

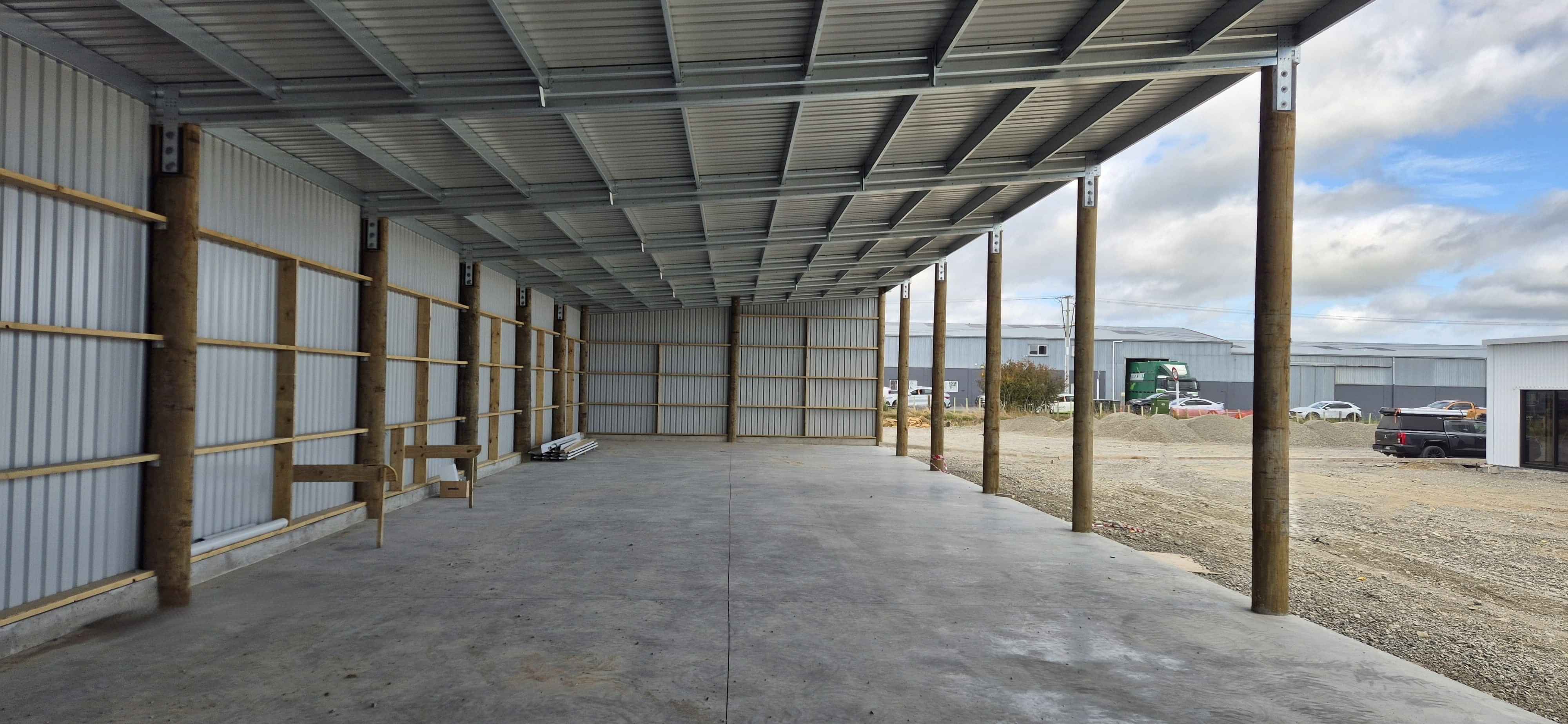

• Structure - Heavy Duty Timber Pole Structure with Steel Box Rafters and Purlins.

• Bird Perch Free Roof Frame System

• Floor - 30 Mpa Structural grade floor 150mm thick with Fibre Reinforcing

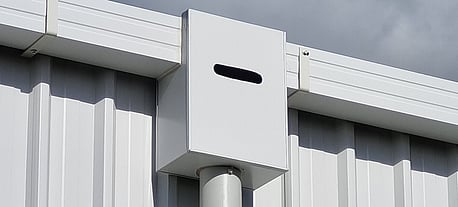

• Guttering - Box Gutters with External Brackets

• Cost - This always varies a lot depending on shed size, specification and location. Please send us a quick message with an outline of your requirements and we will respond very soon. We'd love to hear from you!
